PoE solutions for Axis network video products

The PoE solutions available for each Axis network video product are listed below.  Choose a solution depending on the network components you already have.

Notes:

  • Axis network video products with built-in support for PoE network transformers conforming to IEEE 802.3af can be powered directly from the network cabling.

  • Axis network video products without PoE support will need a splitter in order to separate data and power coming from the network cabling.

  • Note that not all products can use Power over Ethernet.

PoE solutions:

Model:Solution 1A
built-in PoE
Solution 1B
built-in PoE
Solution 2A
without PoE
Solution 2B
without PoE
Network cameras
AXIS 206----
AXIS 206M----
AXIS 207----
AXIS 210--Check Sign_0904Check Sign_0904
AXIS 210ACheck Sign_0904Check Sign_0904
AXIS 211Check Sign_0904Check Sign_0904
AXIS 211ACheck Sign_0904Check Sign_0904
AXIS 213 PTZ---     Check Sign_0904 *)
AXIS 221Check Sign_0904Check Sign_0904
AXIS 225FDCheck Sign_0904Check Sign_0904
AXIS 230---     Check Sign_0904 *)
AXIS 231D----
AXIS 232D----
Video Servers
AXIS 240Q--Check Sign_0904Check Sign_0904
AXIS 241Q/QA--Check Sign_0904Check Sign_0904
AXIS 241S/SA--Check Sign_0904Check Sign_0904
AXIS 250S--Check Sign_0904Check Sign_0904

Works with the Power over LAN Active Splitter only.

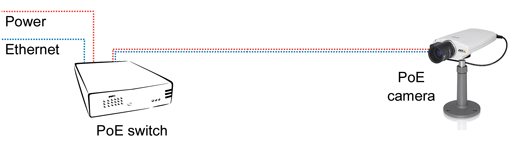

 Solution 1A: Network camera with built-in Power over Ethernet and PoE-enabled switch.

Axis PoE solutions 1 1005

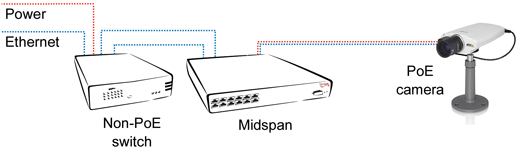

 Solution 1B: Network camera with built-in Power over Ethernet, standard switch and Power over LAN Midspan.

Axis PoE solutions 2 1005

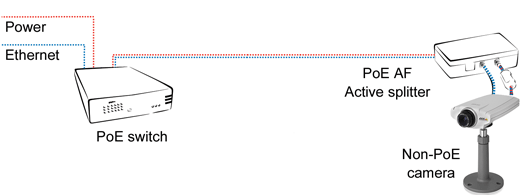

 Solution 2A: Network camera without built-in Power over Ethernet, PoE-enabled switch and active splitter (802.3af compliant splitter only).

Axis PoE solutions 3 1005

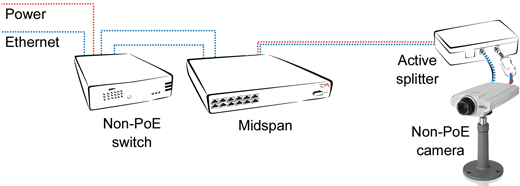

 Solution 2B: Network camera/video server without built-in Power over Ethernet, standard switch, Power over LAN Midspan and active splitter.

Axis PoE solutions 4 1005
