OMF | Modular Optical Modem for Fractional E1/T1

Modular E1/T1 Fiber Optic Modem

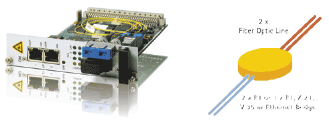

OMF Mod Optical Modem Fractional E1T1_1106

Product Specifications:

  • Data rate: up to 2048 kbps
  • Selectable Interfaces: X.21, V.35, Ethernet Bridge, G.703 E1
  • Transmission distance up to 80 km
  • Single fiber solution (WDM) available
  • Local and remote loop-back, BER test and performance monitoring on line and interface ports
  • Inband Remote Management
  • VT100 and optional SNMP management via a rack agent available
  • Modular E1/T1 Fiber Optic Modem

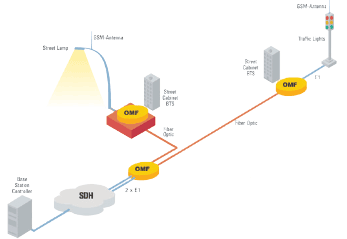

OMF Mod Opt Modem Fract E1T1 Diagram_1106
