CMUX-2550 | 2.5G Multi-service PDH, Ethernet & SDH/SONET Platform

Multi-service provisioning access for voice and data transmission over STM-16/OC-48 line

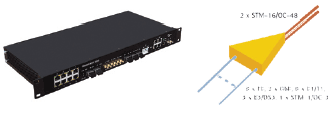

CMUX-2550 2.5G Multi-service PDH_1106

Product Specifications:

  • Up to 8 x FE, 2 x GbE, 8 x E1/T1, 3 x E3/DS3 and 1 x STM-1/OC-user interfaces over protected STM-OC-48 line
  • 1+MSP
  • L2 switching on all LAN ports
  • Time slot assignment capability
  • Dynamic bandwidth allocation with LACS
  • Support GFP, X.86 LPAS or RFC1662 PPP
  • Virtual Concatenation on all data interfaces
  • Multi-service provisioning platform for up to 2.5 Gbps, that delivers various services including protected optical transport and access options
    such as FE, GbE, E1/DS1, E3/DS3 and SDH/SONET services
  • Enables multi-connectivity including: Terminal Multiplexer, SDH/SONET Add/Drop Multiplexer for ring, mesh, or chain applications
  • Comprehensive configuration, fault, performance, maintenance and security management tools
  • Compact 19” 1U rack mount unit

CMUX-2550 2.5G PDH Diagram_1106
