The VCS-1100 Series Digital Video Encoder/Decoder provides video in an asynchronous RS-232 format for use with ISDN and POTS lines. This product also features three bi-directional RS-232 sub-channels, each programmable to a maximum of 19.2 kbps.

APPLICATIONS:

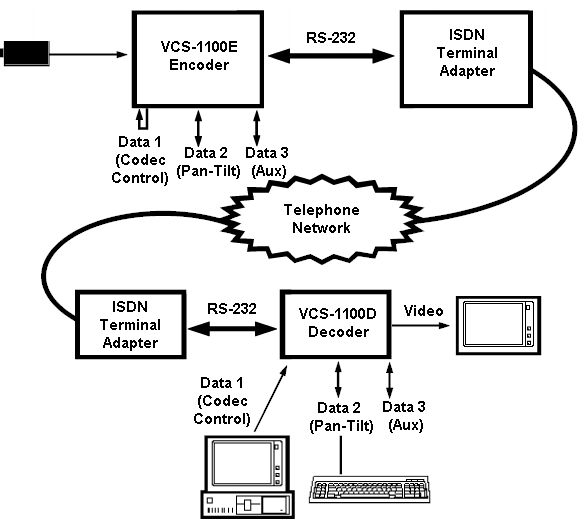

• Remote video surveillance over telephone network (ISDN or POTS) where auxiliary data channels are needed.
• Highway/traffic monitoring
• Mass transit systems
• OEM Interfaces

FEATURES

• Digitizes and compresses video input for transmission in asynchronous RS-232 format.
• 3 RS-232/RS-422 bi-directional data channels available (data rate programmable)
• 4:1 switching capability
• Overall data rates to 128 kbps
• ITU-T H.261 (p X 64) encoding
• NTSC, PAL, Y/C (S-VHS)
• Separate filtering and processing for luminance and chrominance signals
• -20° to +70° degrees C
• Encoders and Decoders individually addressable
• Industrial packaging
• Self-contained with all processors on-board (no computer motherboard)
• Simple user interface via Windows 2000/Windows XP program
• Extensive diagnostics via 80 character LCD display, including frame rate and device temperature
• 8-28 VDC or 8-20 VAC (110 VAC, 220 VAC optional)
• 2 units mount side-by-side in 19" rack (2 high)

SPECIFICATIONS

VIDEO

Video Inputs (Encoder):

Format

          NTSC, PAL

          Y/C (S-VHS)

optional

Voltage

          .5 V - 1.2 V peak to peak (75 ohm)

Connectors

          BNC (NTSC, PAL)

          S-VHS (Y/C)

Video Outputs (Decoder):

Format

          NTSC, Y/C (S-VHS) (simultaneous)

          R-G-B, PAL, SECAM

optional

Voltage

          1.0 V peak to peak (75 ohm)   (NTSC)

Connectors

          BNC (NTSC, PAL)

          S-VHS (Y/C)

          15-pin high density (R-G-B)

Data (Video):

Format

          RS-232 asynchronous

Clock Rate

          128 kbps maximum

Connector

         DB-9(F)

Performance:

Resolution

          720 x 625 maximum (format dependent)

Compression:

Algorithm

           ITU-T H.261 (p x 64)

GENERAL

Data (Programming Switching):

Format

          RS-232

Connector

         RJ-11

Data (Control):

# Channels

          3 bi-directional

Format

         RS-232/RS-422

Data Rate (per channel)

          to 19.2 kbps (programmable)

Maximum Packet Size:

           64 bytes (per channel)

Connectors (3)

          DB-9 (M)

Diagnostics:

         4 line X 20 character LCD display

         (Data Rate, Quality Level, Frame Rate, Video

         Status, Board Temperature)

Power Requirements::

         8-28 VDC (20w maximum)

         8-20 VAC

         110 VAC

optional

         220 VAC

optional

         -48 VDC

optional

Connector

         2 pin Phoenix type (removable)

Physical and Environmental:

Dimensions

         3.47" H x 8.37" W x 8.00" D    (1/2 of 19" W)

         (8.80 cm x 21.24 cm x 20.30 cm)

         Notes:

         1. 19" rack mount option (2U high)

         2. 2 units mount side-by-side

              in 19" rack mount

Weight

          3 pounds 12 oz.

Temperature

          -20° to +70° Centigrade

          (-4° to + 158° Fahrenheit)

Humidity

         0 to 95% non-condensing

ORDERING INFORMATION

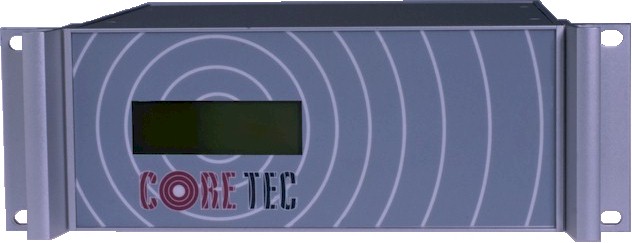

VCS-1100E

Video Encoder

VCS-1100D

Video Decoder

ACCESSORIES

PCA-1100

Programming Cable assembly for VCS-1100 Series

PS-1100

Power Supply for VCS-1100 Series

SW-1100

User Interface Software for VCS-1100

VCS-EB

Extender brackets for single unit 19" centered mounting (per pair)

IC-1100-232

RS-232 Interconnect Cable

OPTIONS

"-1"

110 VAC Powered

"-2"

220 VAC Powered

"-RGB"

R-G-B Output from Decoder (Suffix used on Decoder Only)

"-SV"

SVHS Input on Encoder (Suffix used on Encoder Only)
