TrangoLINK-10 Dual Band Wireless Ethernet Bridge

TrangoLINK-10_1005 The TrangoLINK-10 outdoor wireless Ethernet bridge offers superior performance, long range, dual band flexibility, and ease of installation at an affordable price.

  • Dual band 5.8 GHz / 5.3 GHz, software switchable
  • Up to 40-mile range, 21 dB fade margin
  • 10 Mbps usable subscriber throughput
  • Multiple antenna options

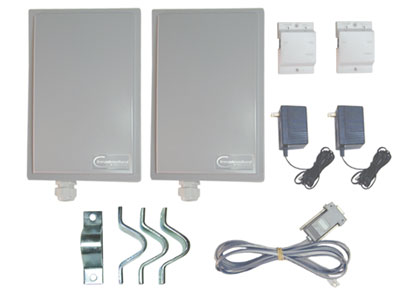

    The TrangoLINK-10 kit includes two radios (master and remote) with or without internal antennas as well as all necessary hardware and power supplies. External Antennas are sold separately.

  • Ideal for enterprise class point-to-point WAN extensions or ISP backhaul applications, the TrangoLINK-10 is versatile, reliable, and robust. The TrangoLINK-10 operates at either 5.8 GHz or 5.3 GHz and provides network operators with an inexpensive, yet powerful outdoor-ready point-to-point Ethernet bridge. The system reliably delivers 10 Mbps up to 10 miles with integrated antennas and up to 40 miles with external antennas. The TrangoLINK-10 can be deployed as a backhaul system or as a wireless alternative to leased line and multiple T1 circuits.

    Download the TrangoLINK-10 Dual Band data sheet - PDF Version


    TrangoLINK-10 Kit_1005
    • The TrangoLINK-10 provides channels of operation in both the 5.8 GHz ISM band or the 5.3 GHz U-NII band.
    • Direct sequence spread spectrum technology provides excellent range and immunity to interference.
    • Proprietary MAC authentication coupled with transmission scrambling provides a high degree of over-the-air security.
    • Configuration is simple and can be performed in a matter of minutes.
    • Dual polarized antennas combined with 11 non-overlapping channels provide 22 channel/polarity combinations for maximum co-location ability. Polarity and channel selections are remotely switchable.
    • A variety of long range antennas are available including the integrated 10 mile antenna as well as external 20 mile and 40 mile options (5.8 GHz band).
    • Powerful remote management tools are available via Telnet and web-browser interfaces as well as SNMP.
    • Power-over-Ethernet design ensures easy installation and quick deployment.
    • Kit includes all necessary hardware for out-of-box installation.
    • Rugged outdoor design.

    Antenna / Range Chart

    Antenna5.8 GHz Range5.3 GHz Range
    Integrated / Internal Antenna (18 dBi)10 Miles (10 dB fade margin)3 Miles (10 dB fade margin)
    15" Patch Antenna (24 dBi) part #AD5830-23-D20 Miles (15 dB fade margin)5 Miles (10 dB fade margin)
    36" Dish Antenna (31 dBi) part# SPD3-5.2T (RadioWaves, Inc.)40 Miles (21 dB fade margin)10 Miles (10 dB fade margin)

    Specifications

    Frequency of Operation5725 MHz to 5850 MHz (High-band)
    5250 MHz to 5350 MHz (Low-Band)
    User Data Throughput10 Mbps
    Antenna PolarizationHorizontal / Vertical (Software Switchable)
    Modulation FormatDirect Sequence Spread Spectrum (DSSS) with RAKE
    SecurityProprietary MAC Authentication Scheme, Over the air data scrambling.
    Configuration/ManagementTelnet, SNMP (via AP), TFTP, HTTP
    Physical Interfaces10/100 Ethernet Autosensing, Serial Port (RJ11)
    Power MethodPoE
    Voltage Limits10.5 VDC – 24 VDC
    Enclosure TypeAll-weather, polycarbonate
    Temp Range-40° to 60° C (-40° to 140° F)
    Radio Dimensions12.5" × 8" × 2 ¾"
    Radio Weight4 Lbs
    InterfacesRJ-45 and RJ-11
