15 dBi Panel Antenna for window and wall mount

15 dBi Panel Antenna for window and wall_0904

Outdoor medium-range antenna for 5.25 - 5.850 GHz frequency range. The antenna can be installed on the inside of the window using suction caps, or on the outside on a wall. It has an opening angle of 45 degrees.

Electrical specifications

Frequency range5150 MHz - 5850 MHz
Gain*15 dBi
VSWR2.0 : 1 Max.
PolarizationLinear, vertical
HPBW / horizontal45 degrees
HPBW / vertical10 degrees
Front to back ratio18 dB
Downtilt0 degrees
Power handling20 W (cw)
Impedance50 Ohms
ConnectorN-Female
CableULA-168; 200 cm
Cable loss2 dB
*exclusive of cable loss

Mechanical & environmental specifications

Survival wind speed180 km/hr
Temperature-40º C to +80º C
Humidity95% @ 25º C
Lightning Protection-40 to +80 degrees C
Radome colorWhite
Radome materialABS, UV resistant
Weight0.6 kgw
Dimensions330 x 93 x 21 mm

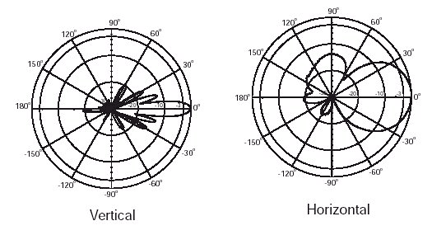

Antenna Patterns

15-dBi-High Gain Antenna Patterns_0904
