MHX910A-HV-LITE - Professional OEM Wireless Module

900MHz Lowest Cost Complete Serial Wireless Communications

The MHX-910A-HV-LITE is the lowest cost ready to install frequency-hopping 900 MHz spread-spectrum communications module providing the industry’s most robust and cost-effective means of providing embedded long-range data communications between industrial serial communication devices. This unit is modular certified to a full 1W, where other competitors fall short of a watt of power, the gives long range performance unlike any other The MHX-910A-HV-LITE is the industry's lowest cost, "ready to install" 900 MHz frequency-hopping spread-spectrum communications module. It provides the most robust and cost-effective means of providing long-range data communications between industrial serial devices. The MHX-910A-HV-Lite is FCC and IC modular certified to a full 1W, which gives long range performance unlike any other modem. It allows for an input of 8 to 30VDC and RS232/485/422 level communication drivers for quick integration.

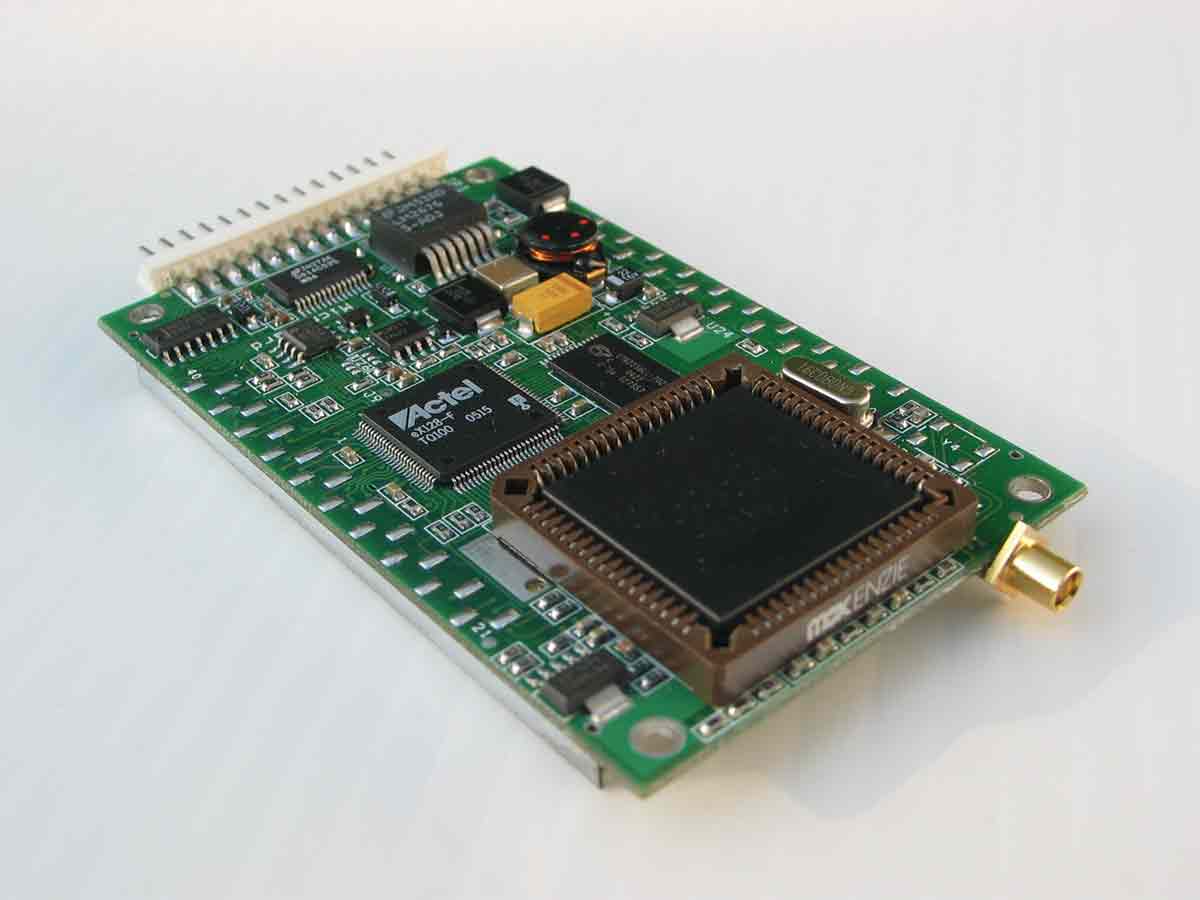

MHX910A-HV-Lite_1206

Why Choose MHX910A Product?

Distance
The MHX910A-HV-Lite gives the longest possible range in the toughest RF environments. Our very low noise figure and extremely high interference rejection allows our transceivers to receive the weakest possible signals. Your installation costs will be reduced, due to shorter tower heights and lower gain antennas.

Performance
These radios are ruggedized communication equipment built to blast through the toughest environments for noise, interference, vibration, and other 900 MHz products. Do the test for yourself and put any other radio beside our radio and see which link is the best.

Cost
Our cost is the most competitive in the industry. Each unit can be configured as a Master, Repeater, or Remote unit. All options are included in the price and there is no extra software required.

Download the MHX910A-HV-LITE data sheet - PDF Version

Features

• Ready to Install - just wire it up to your serial port

• Longest Range (60 miles line of sight)

• Single Unit Operation supports all configuration (Master, Repeater, Slave)

• Repeater can be used as a remote unit

• Flexible Wireless Networking: Point-to-point, Point-to-Multipoint, Repeater, and Peer-to-Peer

• Fastest Serial Rates (300 baud  to 115.2 kbaud) (RS232/RS485/RS422)

• Advanced serial port supports legacy serial devices

• System Wide Remote Diagnostics

Industrial Temperature Range : -40 to 85 Celsius

• Optional Class 1 Div 2



Radio



• Standard RF Data Rate: 172kbps

• Receiver Sensitivity: -105 dBm

• Impedance 50 ohms

• Output Power 1W

• Spreading Frequency Hopping



Protocols



• Point to Point, Point to Multipoint, Repeater, Peer to Peer

• 32 Bit CRC ARQ



Physical Interface



• RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD) (1200 baud - 115kbaud)

• RS485 (2 Wire / 4 Wire)

• RS422



Indicators Lines



• Wireless TX LED

• Wireless RX LED

• RSSI Level 1,2,3 LED



Power Requirements



• Voltage Input: 8 to 30 VDC

• Current 0.6A @ 12VDC Maximum Transmit

• Current 150mA @ 12VDC Nominal Operating Current



Management



• Remote Diagnostics



Remote Diagnostics



• RSSI

• Radio Error Statistics



Environmental



• Operation Temperature: -40 to +85 C

• Humidity 95% non-condensing



Security



• Proprietary Frequency Hopping Spread Spectrum



Approval



• FCC

• IC

• Class 1 Div 2 (optional)



Models



• MHX910A-HV-LITE (North American)



For other models please contact us.
